GSoC Week 3 recap

Howdy! I wasn't sure of the best way to represent my progress thus far, but I figure a table is an alright way to summarize.

tool category

initial, current test count

status

notes

datum tools

0, 0

hold

waiting on attachment editor work in phase 2

add. & sub. features/primitives

3, 11

blocked

basic Pipe not working; when fixed, all tools in this category (but not all their options) will have test coverage

transformations

0, 3

ready

Mirrored added, still need Linear and PolarPattern

dressup features

0, 0

ready

boolean operation

0, 0

ready

Previously seemed to misbehave but recent changes to containers may have fixed this

I got my Pad & Pocket tests added, so right now the total Δtests is 11. Next up is Loft and Pipe. However, Pipe has a bit of a blocking bug right now. My test scenario involves a simple circle centered at the origin in an XY-attached sketch, serving as the base Profile, and a simple line on the Z axis in an XZ-attached sketch. The test construction is illustrated in figure 1.

This should result in a cylinder, as the preview indicates in figure 2. For some reason, when clicking OK, an external reference warning is being generated, and this is blocking any test constructions for PartDesign Pipe.

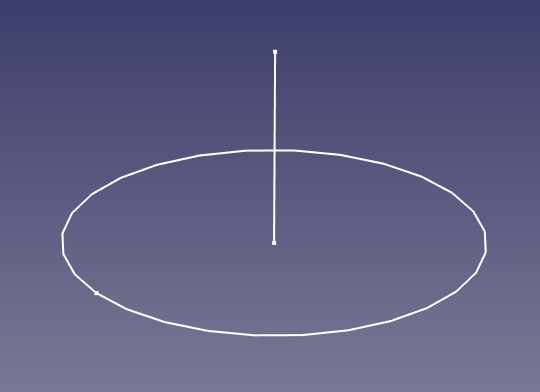

test pipe construction

Figure 1. PartDesign Pipe Profile and Spine sketches which should form a simple cylinder.

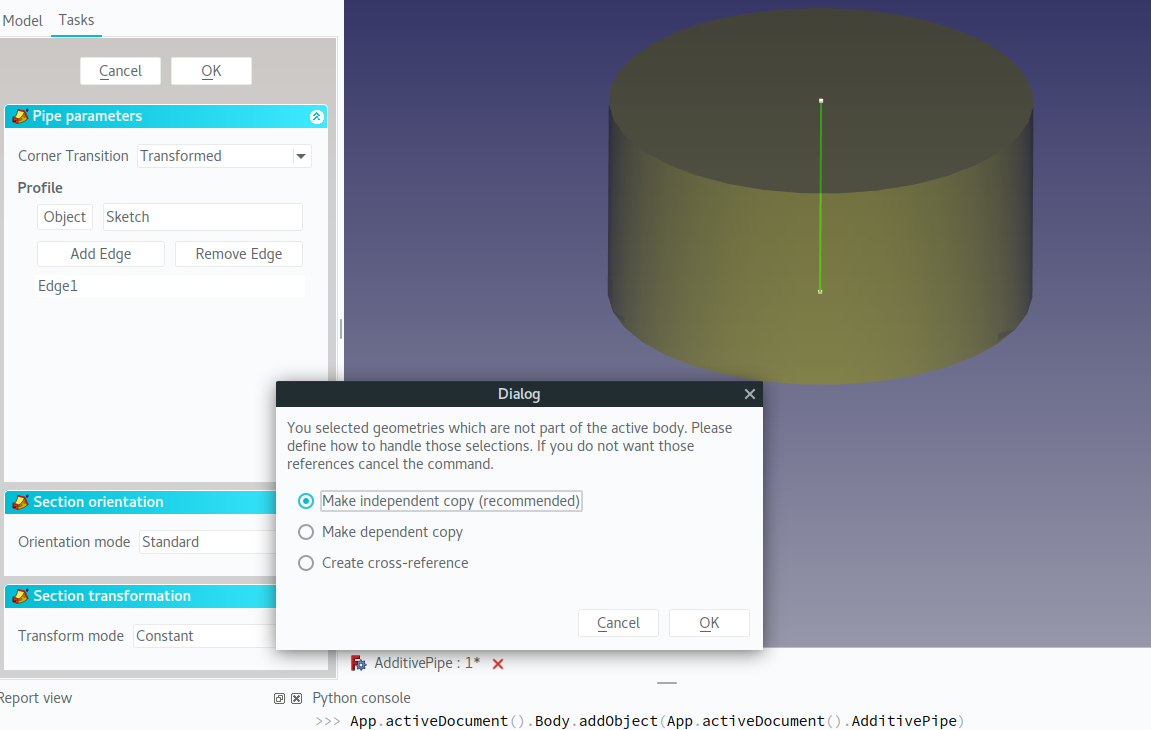

external reference warning

Figure 2. PartDesign Pipe erroneously warning about external references.

I also ran into a bug in PartDesign Revolve, which, as bugs are wont to do, ended up being two bugs. The construction case to see them is depicted in figure 3.

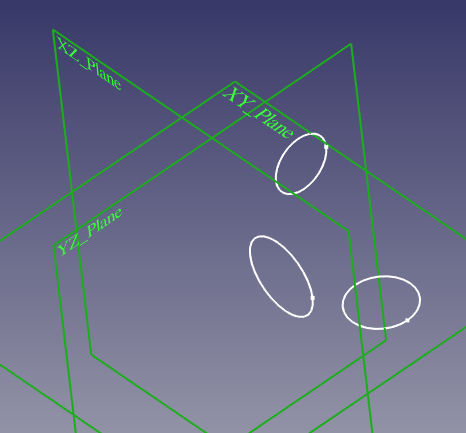

revolution sketches

Figure 3. Simple sketches attached to the three base planes.

I attached a simple circle sketch to each of the three base planes, and offset them so they wouldn't be symmetric with respect to the origin or any base axes. When attempting to add a Revolution with these sketches, they behave as expected, until one attempts to revolve them about the axis which is normal to the sketch's plane. For the XY- and YZ-attached sketches, the following error appears:

Unhandled Base::Exception caught in GUIApplication::notify. The error message is: Rotation axis must not be perpendicular with the sketch plane

However, if one tries to revolve the XZ-attached circle, FreeCAD gives it the ol' college try, but ends up with an awfully thin "solid":

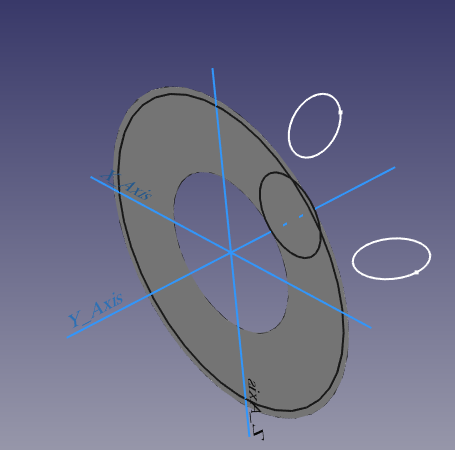

faulty revolution

Figure 4. An "error-free" PartDesign Revolution.

I'll also be looking into these bugs this week.
